DUSB9 Pin Assignment
| 2: | CAN_L |
| 3: | GND |
| 7: | CAN_H |
| 9: | VBAT 12v |
M12 Pin Assignment
| 1: | Shield |
| 2: | NET-S – VBAT 12v |
| 3: | NET-C – GND |
| 4: | NET-H – CAN_H |
| 5: | NET-L – CAN-L |

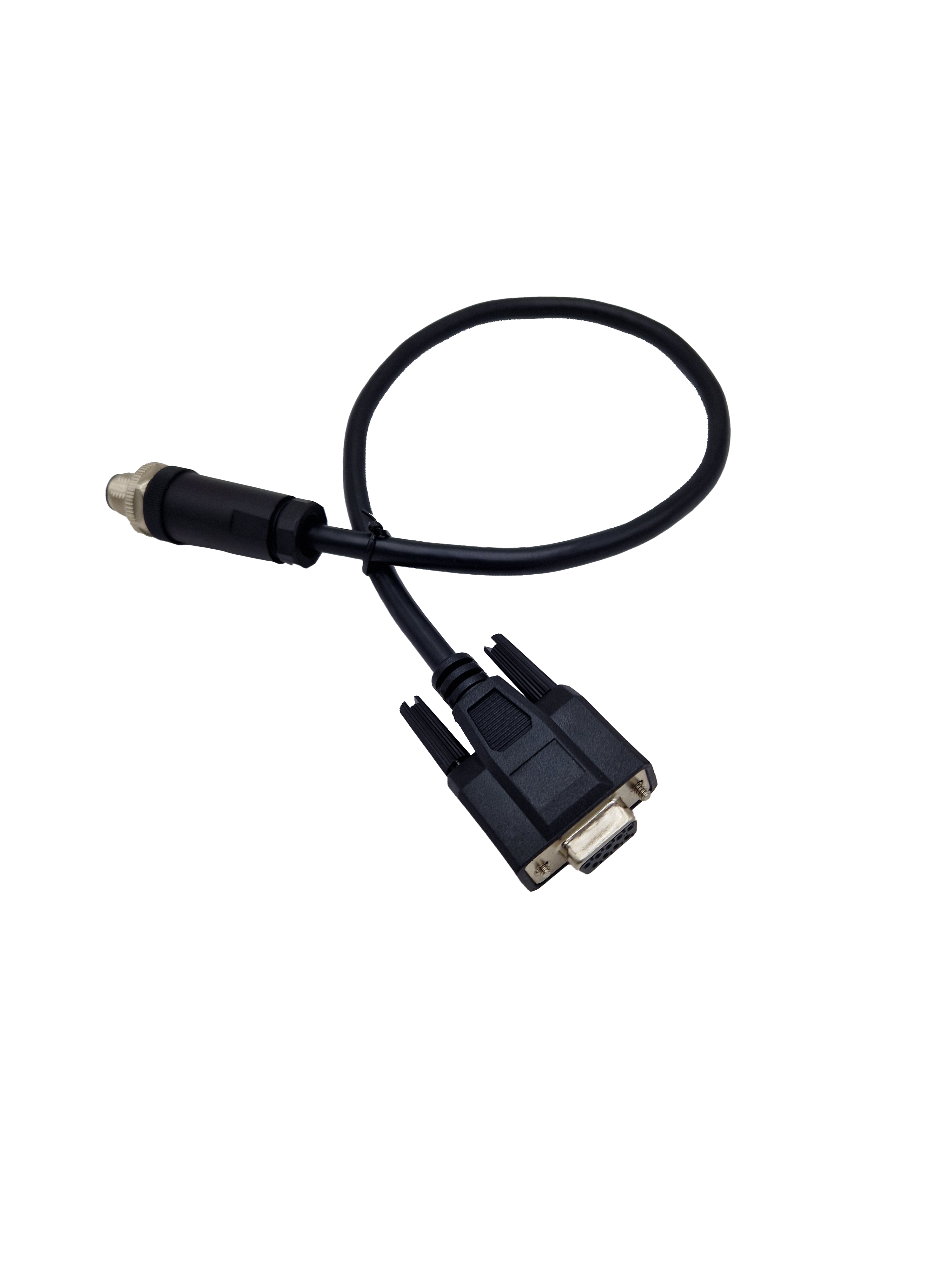

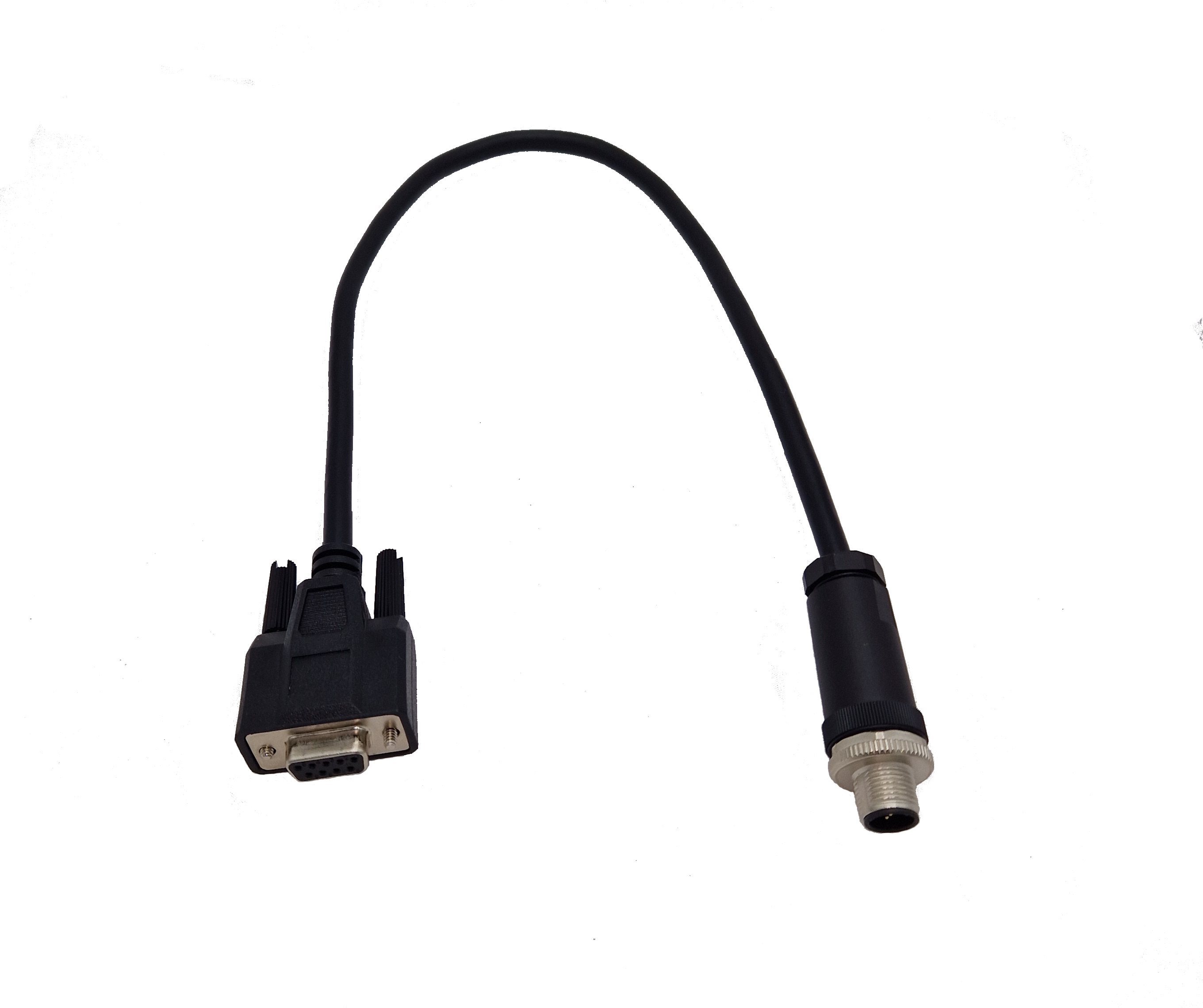

M12 Male to D9 Female Shielded Converter Cable
£30.00
Description
M12 Male (NMEA2000) to DSUB9 Female Converter Cable. Used for connecting CAN equipment and tools to a NMEA 2000 network. Approx. 0.5 metres in length.
Perfect for connecting your Kvaser CAN interface to a NMEA 2000 network.
